Puremind rooftop-mounted HVAC unit

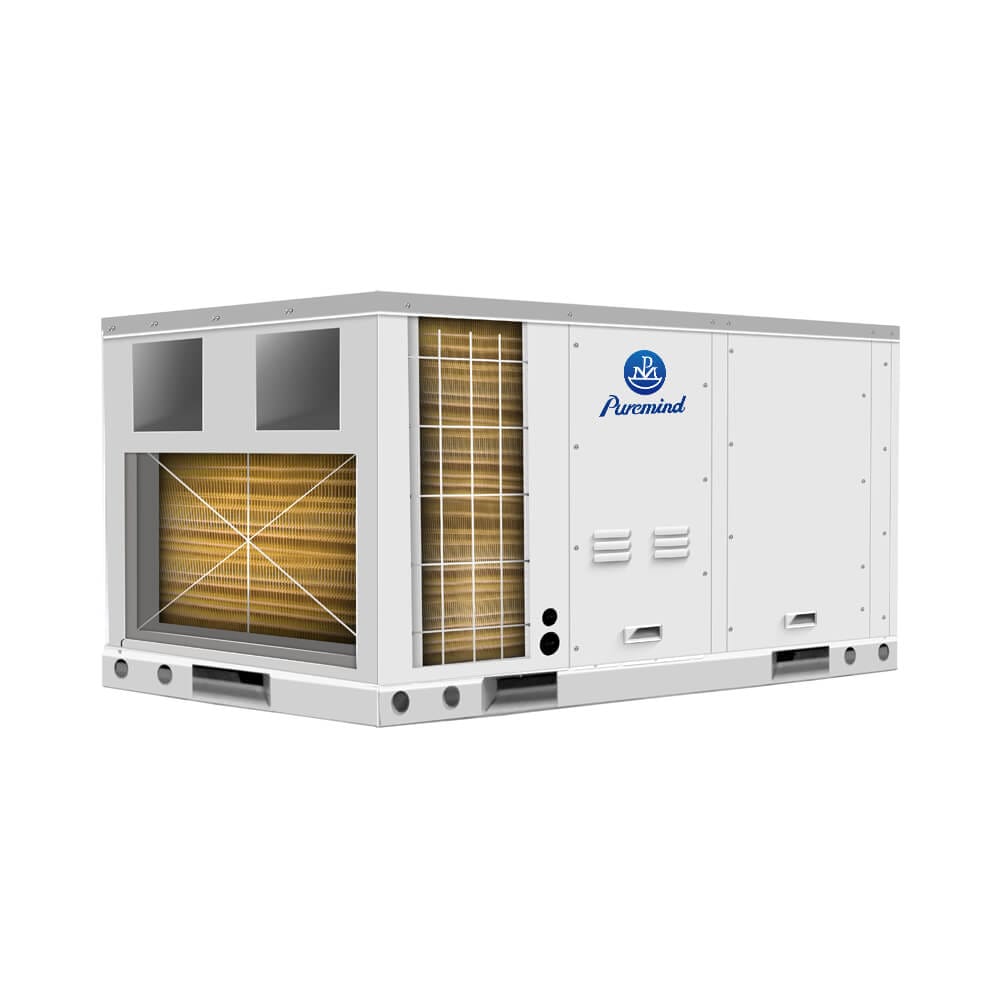

Rooftop Package Unit 30TON AC-1

  • DC inverter motor
  • High-efficiency fan blade
  • Excellent grid adaptability
  • Multiple protection design
  • Automatic adjustment of throttling
  • Anti-crossflow design of outdoor fan
  • Weather fastness fan blade
  • Non-polarity communication design
  • Auxiliary controller
SKU: PGKA-30U/AC-1 Categories: , , Tags: , , , ,
WhatsAppGet Quote
rooftop-mounted air conditioning system
all-in-one rooftop cooling unit
rooftop HVAC package system
commercial rooftop AC unit
packaged rooftop air conditioner
rooftop package unit

Specification

Model PGKA-30U/AC-1
Ton   30
Capacity
Cooling Capacity Btu/h 358300
Cooling Capacity kW 105.0
Heating Capacity Btu/h /
Heating Capacity kW /
Electrical Data
Power Supply   380-415V 3N~ 50Hz
Cooling Power Input kW 34.0
Heating Power Input kW /
Max. Power Input kW 43.0
Max. Current A 73.0
Sound
Sound Pressure Level dB(A) 76
Refrigerant
Refrigerant Type - R410A
Refrigerant Weight kg 15.0+15.0
Air Flow
Air Flow Volume CFM 10889
Air Flow Volume m³/h 18500
Pressure
External Static Pressure Pa 250
External Static Pressure InWg 1
External Static Pressure Range Pa 125-300
External Static Pressure Range InWg 0.50-1.20
Dimension
Outline Dimension(W×D×H) mm 3800×2240×1250
Package Dimension(W×D×H) mm 3810×2250×1283
Weight
Net Weight kg 1500
Gross Weight kg 1550
Loading
Loading Quantity 20'GP 1
Loading Quantity 40'HQ 6

[elementor-template id="19276"]

Introduction

The Puremind Rooftop Package Unit 30TON AC-1 is a top-of-the-line HVAC solution designed to meet the demanding climate control needs of large commercial facilities. With a powerful 30-ton cooling and heating capacity, this system ensures optimal indoor comfort for expansive office buildings, malls, industrial complexes, and more, while maintaining energy efficiency and eco-friendly operation.

Key Features of Puremind Rooftop Package Unit 30TON AC-1

30-Ton Capacity for Large Commercial Spaces
The 30TON AC-1 unit is perfect for large-scale commercial environments such as office complexes, shopping malls, and industrial buildings. Its 30-ton capacity is designed to provide efficient heating and cooling for vast spaces.
Superior Energy Efficiency
Engineered to reduce energy consumption, the Puremind 30TON AC-1 Rooftop Package Unit operates with exceptional energy efficiency, lowering overall operating costs while providing consistent climate control.
Compact Yet Powerful Design
Despite its large capacity, the 30TON AC-1 unit features a compact design that allows easy installation on rooftops, freeing up valuable ground space for other uses.
Reliable Performance in Extreme Conditions
Built to withstand harsh weather conditions, the 30TON AC-1 ensures reliable performance year-round, maintaining consistent cooling and heating even under challenging environmental factors.
Eco-Friendly Refrigerants
The unit uses eco-friendly refrigerants, contributing to environmental sustainability while still providing high-performance cooling and heating.
Smart Control System
Equipped with a sophisticated control system, the 30TON AC-1 unit allows for easy temperature regulation and real-time monitoring to optimize both comfort and energy use.

Applications for Puremind Rooftop Package Unit 30TON AC-1

This RTU Air Conditioner is tailored
Large Office Complexes
Ensures efficient climate control in multi-story office buildings, improving employee comfort and productivity.
Shopping Malls & Retail Spaces
Provides reliable temperature management for high-traffic retail environments.
Industrial Facilities & Warehouses
Ideal for large industrial spaces or warehouses that require significant heating and cooling.
Hotels & Resorts
Perfect for maintaining a comfortable environment in large hotels, ensuring guest satisfaction.
Hospitals & Educational Facilities
Suitable for healthcare facilities and educational institutions where temperature control is critical.

Why Choose Puremind

Massive Capacity for Large Spaces
With a 30-ton cooling and heating capacity, this unit is ideal for large commercial buildings that require extensive climate control.
Energy Efficient
Designed to operate with high energy efficiency, reducing your business’s energy consumption and costs.
Reliable Performance
Built to last, the 30TON AC-1 unit delivers consistent performance even in extreme conditions.
Compact & Space-Saving
The compact design makes it easy to install on rooftops, saving valuable ground space.
Environmentally Friendly
The use of eco-friendly refrigerants reduces your environmental footprint while maintaining optimal performance.
Advanced Control Features
Equipped with smart controls for easy temperature adjustments and energy optimization.
