Store » Central Air Conditioner » VRF System » VRF System 22.4kW
cassette-type split system with low energy use

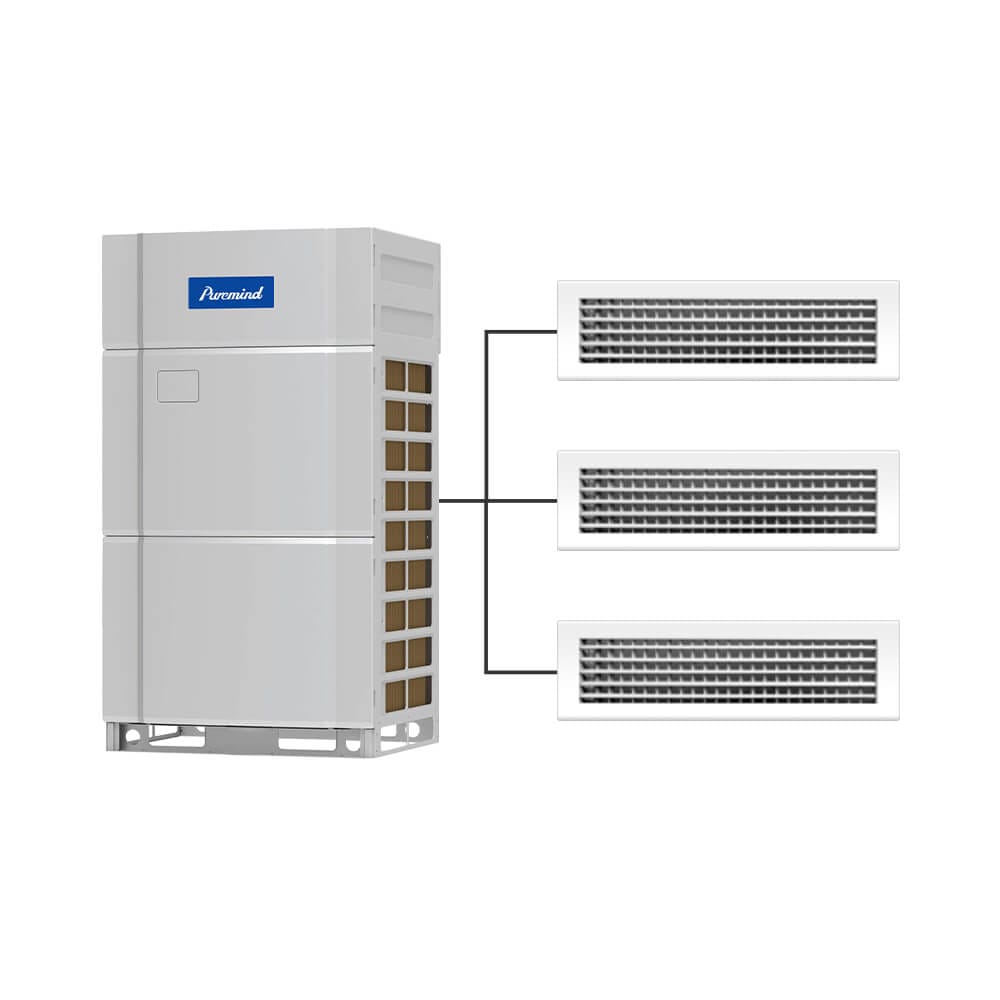

VRF System 22.4kW

  • Free match with fan coil indoor unit
  • Capability of heating and cooling
  • Full DC inverter technologies
  • Intelligent temperature control technology
  • Centralized control
  • Small installation space and quiet operation
  • Ultra-long connection pipe
SKU: PGKV-22.4 Categories: , , Tags: , , , , , ,
WhatsAppGet Quote
variable flow mini VRF unit for light commercial
smart control mini VRF aircon
compact VRF inverter unit with fan motor
ceiling-mounted inverter cassette AC
Puremind embedded cassette type AC
low noise ceiling cassette air conditioner
smart cassette AC with remote control
Puremind ducted split VRF cooling unit
Puremind inverter cassette air conditioner unit
floor-standing mini VRF AC cabinet
heat recovery mini VRF cooling and heating unit
Puremind outdoor compact VRF aircon
high-efficiency mini VRF with golden fin coil
Puremind ductless VRF air conditioning unit

Specification

Model PGKV-22.4
Capacity Range HP 8
Capacity Cooling kW 22.4
Heating kW 25.0
EER W/W 4.48
COP W/W 5.21
Power Supply V/Ph/Hz 380-415V 3N~50/60Hz
Min. circuit/Max. fuse Current A 23/25
Power Consumption Cooling kW 5.00
Heating kW 4.80
Maximum Drive IDU NO. unit 13
Refrigerant Charge Volume kg 5.5
Sound Pressure Level dB(A) 56
Connecting
Pipe		 Liquid mm φ9.52
Gas mm φ19.05
Dimension
(WxDxH)		 Outline mm 930*775*1690
Package mm 1000*830*1855
Net Weight/Gross Weight kg 215/225
Loading Quantity 40'GP unit 28
40'HQ unit 28

[elementor-template id="19255"]

Introduction

The Puremind VRF System 22.4kW is a powerful, energy-efficient cooling solution designed for large commercial and residential spaces. Featuring concealed installation, this unit ensures seamless airflow distribution, whisper-quiet operation, and optimized energy efficiency, making it the ideal choice for offices, hotels, retail spaces, and spacious homes.

With advanced cooling technology, this ducted system delivers consistent temperature regulation, providing a comfortable and aesthetically pleasing indoor environment.

Key Features of Puremind VRF System 22.4kW

High Capacity Cooling
With a capacity of 22.4kW, this VRF system is perfect for large office buildings, shopping centers, and hospitality venues.
Energy Efficiency
Advanced VRF technology optimizes refrigerant flow, reducing energy consumption while maintaining consistent cooling.
Quiet Operation
The system is engineered for minimal noise, ensuring a comfortable and peaceful indoor environment.
Flexible Installation
Compact and modular design allows for easy integration into various building layouts and HVAC configurations.
Smart Controls
Equipped with intelligent controls and IoT compatibility for remote monitoring and management.

Applications of Puremind VRF System 22.4kW

This VRF system is tailored
Commercial Buildings
Offices, retail stores, and large public spaces.
Hospitality Venues
Hotels, resorts, and event spaces requiring precise temperature control.
Healthcare Facilities
Hospitals and clinics needing reliable, quiet, and hygienic cooling solutions.
Industrial Facilities
Factories and warehouses with diverse cooling demands.

Why Choose Puremind VRF System 22.4kW

Customizable OEM/ODM Options
Collaborate with our expert team to design a VRF system that fits your specific project requirements.
Proven Reliability
All Puremind air conditioning systems are rigorously tested to ensure durability and consistent performance.
Global Reach
With clients in over 30 countries, Puremind delivers solutions tailored for diverse climates and markets.
