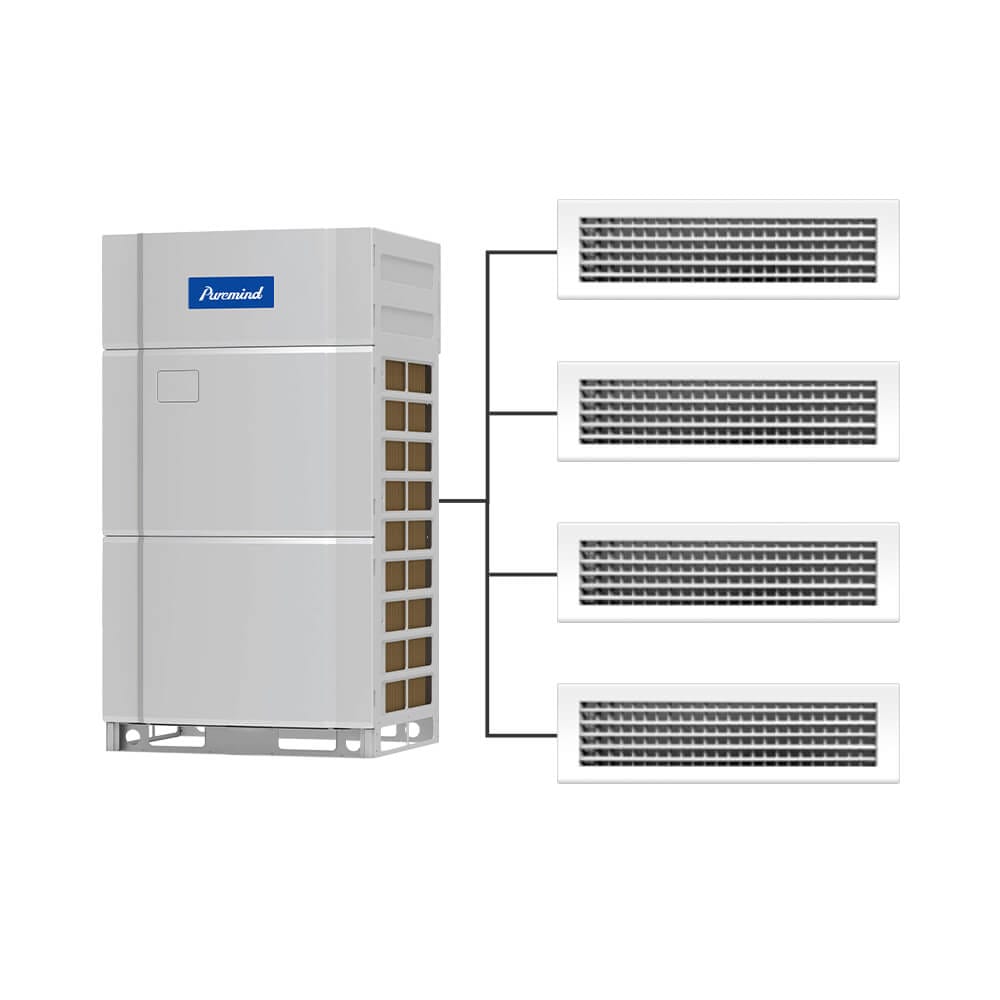

VRF System 45kW

  • Free match with fan coil indoor unit
  • Capability of heating and cooling
  • Full DC inverter technologies
  • Intelligent temperature control technology
  • Centralized control
  • Small installation space and quiet operation
  • Ultra-long connection pipe
SKU: PGKV-45 Categories: , , Tags: , , , , , ,
WhatsAppGet Quote
variable flow mini VRF unit for light commercial
smart control mini VRF aircon
compact VRF inverter unit with fan motor
ceiling-mounted inverter cassette AC
Puremind embedded cassette type AC
low noise ceiling cassette air conditioner
smart cassette AC with remote control
Puremind ducted split VRF cooling unit
Puremind inverter cassette air conditioner unit
floor-standing mini VRF AC cabinet
heat recovery mini VRF cooling and heating unit
Puremind outdoor compact VRF aircon
high-efficiency mini VRF with golden fin coil
Puremind ductless VRF air conditioning unit

Specification

Model PGKV-45
Capacity Range HP 16
Capacity Cooling kW 45.0
Heating kW 50.0
EER W/W 4.17
COP W/W 4.67
Power Supply V/Ph/Hz 380-415V 3N~50/60Hz
Min. circuit/Max. fuse Current A 33.5/40
Power Consumption Cooling kW 10.80
Heating kW 10.70
Maximum Drive IDU NO. unit 26
Refrigerant Charge Volume kg 7.5
Sound Pressure Level dB(A) 60
Connecting
Pipe		 Liquid mm φ12.7
Gas mm φ28.6
Dimension
(WxDxH)		 Outline mm 1340*775*1690
Package mm 1400*830*1855
Net Weight/Gross Weight kg 290/305
Loading Quantity 40'GP unit 22
40'HQ unit 22

Introduction

The Puremind VRF System 45kW is designed for large-scale commercial and industrial applications, offering high-performance cooling and energy efficiency. This system is perfect for environments that require reliable, consistent cooling over extended periods, such as commercial offices, industrial facilities, and more.

Key Features of Puremind VRF System 45kW

High-Capacity Cooling
With a 45kW cooling capacity, this VRF System is designed to handle the demands of large facilities, providing optimal temperature control across multiple zones.
Energy Efficiency
The 45kW system is engineered to minimize energy consumption while delivering maximum cooling performance. It’s an environmentally friendly solution that reduces operational costs.
Flexible OEM/ODM Solutions
At Puremind, we offer customizable OEM and ODM solutions, allowing businesses to tailor the VRF system to their specific requirements and integrate it into their existing systems seamlessly.
Quiet and Efficient Operation
Designed with low-noise operation, the Puremind VRF System 45kW ensures a comfortable and productive environment without disturbing noise.
Advanced Climate Control

With integrated IoT controls, the system allows for remote monitoring and management, ensuring the environment stays comfortable at all times.

Applications of Puremind VRF System 45kW

This VRF system is tailored
Corporate Offices
Keep employees comfortable with consistent temperature control across multiple floors.
Industrial Facilities
Providing efficient and reliable cooling for large-scale manufacturing and processing plants.
Commercial Complexes
Perfect for cooling large shopping malls, office buildings, and other high-traffic commercial spaces.
Hotels & Resorts
Keep guests comfortable with consistent cooling, while maintaining energy efficiency for large hotel or resort operations.
Healthcare Facilities
Essential for keeping hospital wards, laboratories, and other healthcare areas cool and comfortable, ensuring optimal conditions for patients and staff.

Why Choose Puremind VRF System 45kW

Comprehensive OEM/ODM Solutions
Work with our expert engineers to create a VRF System tailored to your project’s specific needs.
Global Reach & Experience
Puremind has decades of experience in delivering high-quality, energy-efficient air conditioning solutions across the world.
Sustainability Focused
We prioritize sustainability and eco-friendly solutions, ensuring that your cooling systems contribute to reducing environmental impact.
